PTFE Gasket |
|
| |
 |
 |
 |
PTFE sheet gasket is the product using PTFE that pure PTFE and blinder are impregnated
As for PTFE, it can be applied to places where chemical resistance of acid, strong alkaline, chlorine gas, organic solvent, etc. or contamination can occur and as for pure PTFE, it can be used for max. 150℃. As for impregnated PTFE, it can be used for max. 260℃
There is a product consisting of only PTFEs and also, there are enveloped gasket that non-asbestos sheet is internally inserted and coated with PTFE and Ebilon gasket forming protrusion on sealing surface by using rubber. |
|
| |
|
| |
|
 |
ENVELOPED GASKET |
| |
|
| |
▶ Its max. using temperature is 150℃ and pressure is Max. 20kgf/cm² |
| |
|
| |
TYPE |
Section |
ENVEKOPE |
KE1 |
 |
KE2 |
 |
KE3 |
 |
|
|
| |
| |
|
| |
|
|

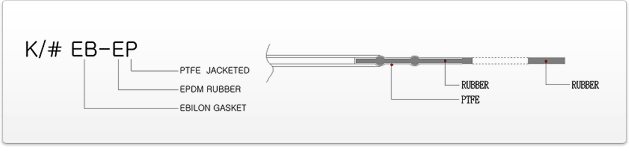

EBILON GASKET |
| |
|
| |
Ebilon gasket is the product suitable for industrial fields requesting high cleanness such as electronic, food, medicine industry because of its small stress in installed to flange
In molding rubber, because two protrusions are formed rather than general flat type, it has concrete leakage prevention effect by even smaller installation force than rubber flat sheet gasket.
It is the best flange gasket of plastic material such as PVC, CPVC, FRP, PVDF, POLYPROPYLENE, etc. |
| |
|
| |
 |
|
|
|
|
| |
|
