How to install a large cylinder type Spiral Wound Gasket

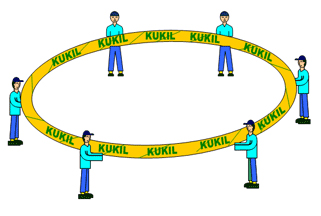

1. How to move
SIZE
Minimum Capacity
remark
ψ1000 ~ ψ1500
2
ψ1501 ~ ψ2000
3
ψ2001 ~ ψ2500
4
ψ2501 ~ ψ3000
6
ψ3001 ~ ψ3500
7
ψ3501 ~
8 ~

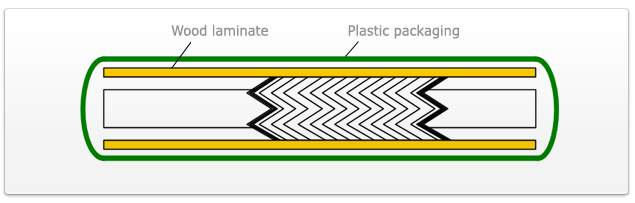

※ Packaged GASKET

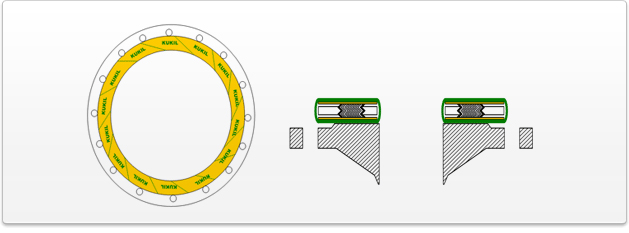

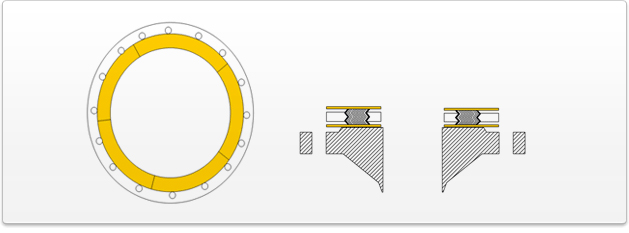

2. Put the packaged GASKET to the FLANGE

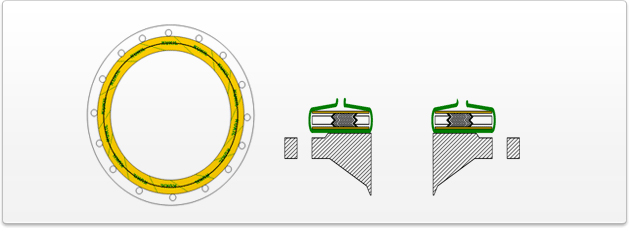

3. Cut the vinyl
4. Remove the vinyl

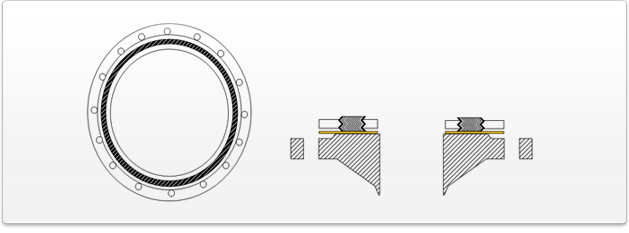

5. Remove the top plywood

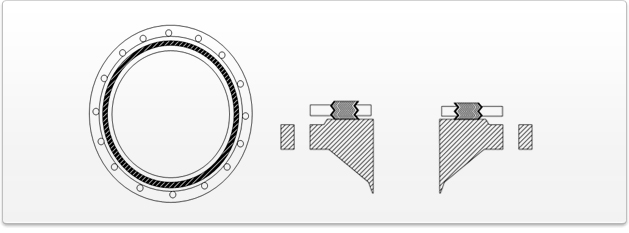

6. Remove the bottom plywood

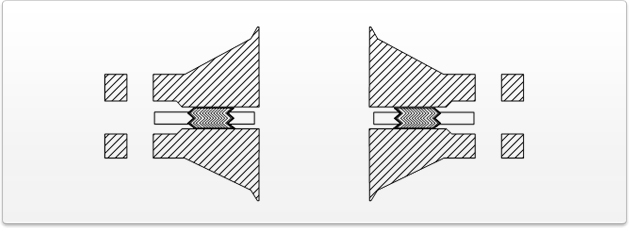

7.Install
※ Note

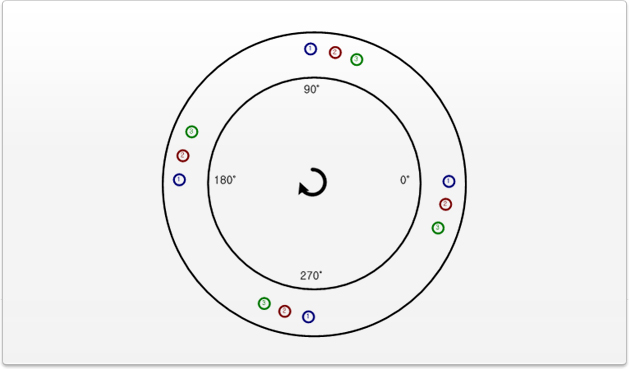

You need at least 2 teams with 2 members each or 1 team with 4 members. Use the same Torque value at the same time for Bolting under 0°, 90°, 180°, and 270° as shown in the picture below
