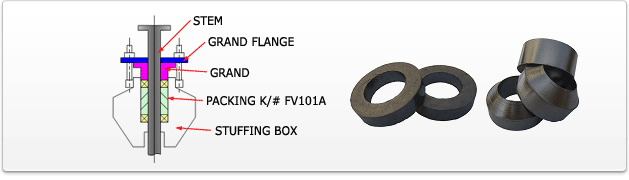

1) Top & bottom level
- Improves the performance of products under pressure and high temperatures by inserting an Inconel Wire Insert Graphite Braid
2) Middle level
- Is composed of several low density Graphite Mold Packings and used semi-permanently with one installation without any changes caused by vibrations during operation and hardening by heat. Uses less maintenance costs.
- Applies a certain angle (not SQ type) and ensures the sealing ability even with a small equipped torque. |
- Provides an excellent sealing ability under high temperatures and high pressure by using an Inconel Wire Insert Graphite Braid.
- Prevents crushing, oxidization, graphite leakage
- Provides excellent stability in size
- Ensures excellent air-tightness by forming inclined planes with certain angles

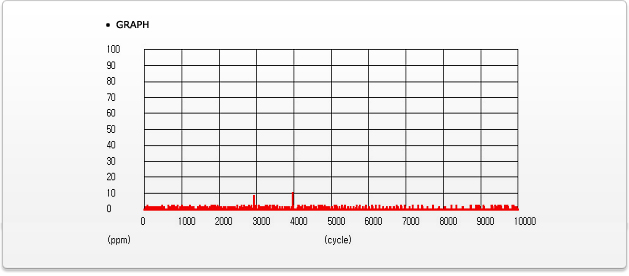

- Less than or equal to 50 PPM of leakage after a 10,000 cycle test
- Low Tightening Torque, Low Handle Torque
- Prevents corrosion of the valve system (Corrosion Inhibitor) |
