Metal Tube O-Ring |
|
| |
 |
 |
 |
Hollow metallic O-ring is the gasket for high pressure that can be used for narrow space because of low connecting pressure.
There are 2 types such as standard type and balance type and also, there is a special type that you can more stably use it by increasing compressing power in inserting and installing it to spring core inside tube and raising recovery rate in using it.
There is a case that they may be coated with PTFE, gold, silver, nickel, etc, in order to increase compliance with flange surface
It is used for wide-ranged purposes from vacuum vessel to extra high pressure vessel |
| |
|
|
|
| |
K/# |
2000 |
2001 |
2002 |
2003 |
TYPE |
PLAIN TYPE HOLLOWMETALLIC
O-RING |
PRESSURE COMPENSATEMETALLIC
O-RING |
PRESSURE FILLEDMETALLIC
O-RING |
CORE INSERTMETALLIC
O-RING |
SECTION |
 |
 |
 |
 |
|
|
| |
|
| |
|
 |

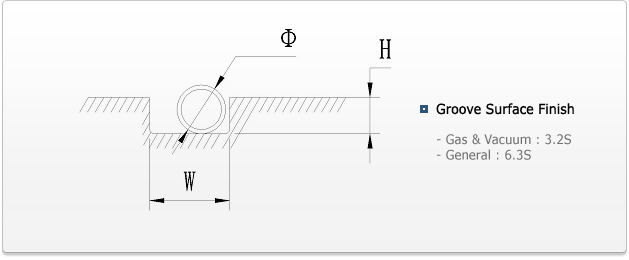

Standard Groove Dimensions |
| |
|
| |
Φ |
Outside Dia. Metal O-Ring |
Depth of Groove
“ H "
|
Width of Groove
" W "
|
1.6 |
15 ~ 50 |
1.20 |
±0.05 |
2.1 |
2.4 |
40 ~ 200 |
1.80 |
±0.05 |
3.3 |
3.2 |
65 ~ 700 |
2.60 |
±0.05 |
4.2 |
4.8 |
500 ~ 1,200 |
3.75 |
±0.05 |
6.2 |
6.4 |
1,000 ~ 1,500 |
5.00 |
±0.05 |
8.5 |
|
| |
|
| |
 |
|
|
| |
| |
| |
| |
|
|
| |
|
